I’ve been spending some time with the modern tooling and thought it would help to blog some of the step-by-step to help others.
Install PAC CLI
Open a command prompt and type pac
to see if the Power Platforms CLI (command line interface) is installed on your machine. If you get an error (not found) you’ll need to install the PAC CLI.

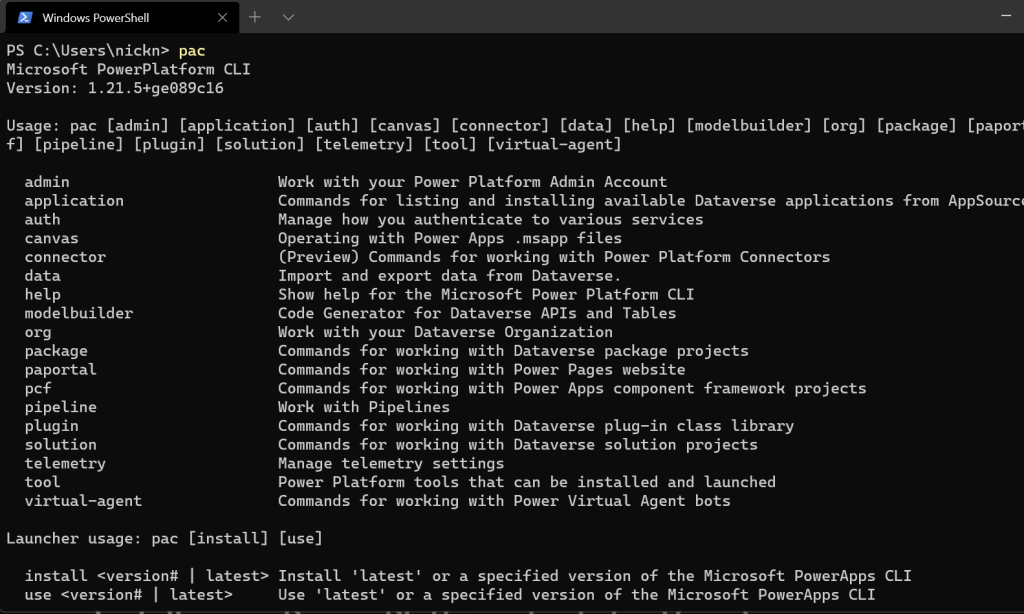

Go to https://aka.ms/PowerAppsCLI to download the installer. Then run the installer. If the CLI installs successfully than the pac
command should run successfully and display a list of commands.

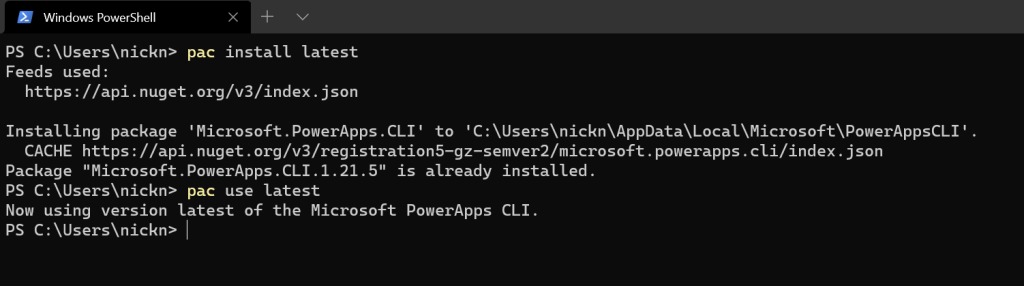

Ensure you are working with the latest version by running the command pac install latest
and pac use latest
.
And if you are wondering, yes you can install and use previous versions by specifying the version number. Try using the above commands changing latest
to 1.12.2
. Just be sure to do a pac use latest
to switch back to the latest version.
Why would you select a version other than the latest?
If you are writing a script you may want to ensure specific behavior regardless of what version is installed on the machine. By using these commands you can ensure that your scripts pac
references execute using a known and tested version of the cli.
Connecting to a Tenant
Now that you’ve got PAC CLI working you’ll likely want to connect to a tenant and, potentially, select a specific organization to work with using commands.
You’ll use the pac auth
command to connect, list, and select a tenant. The PAC CLI tool supports connections to multiple tenants.

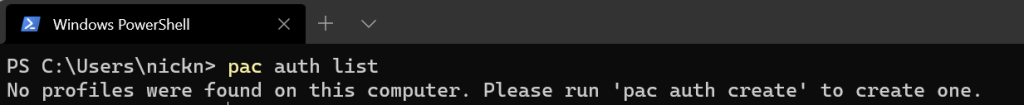

To get started we’ll see if there are any existing connections. Issue a pac auth list
command to show any existing tenant connections.

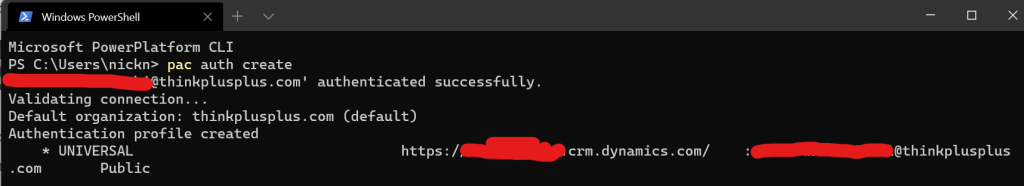

If you have a commercial (not a sovereign cloud such as GCC or GCC High) that you can authenticate with using a browser-based (Azure AD) login you can issue the command pac auth create
to quickly create an authentication. You’ll get a pop-up browser window allowing you to select an existing connection or create a new connection.
After signing in you’ll be returned to the terminal window and see a successful connection.

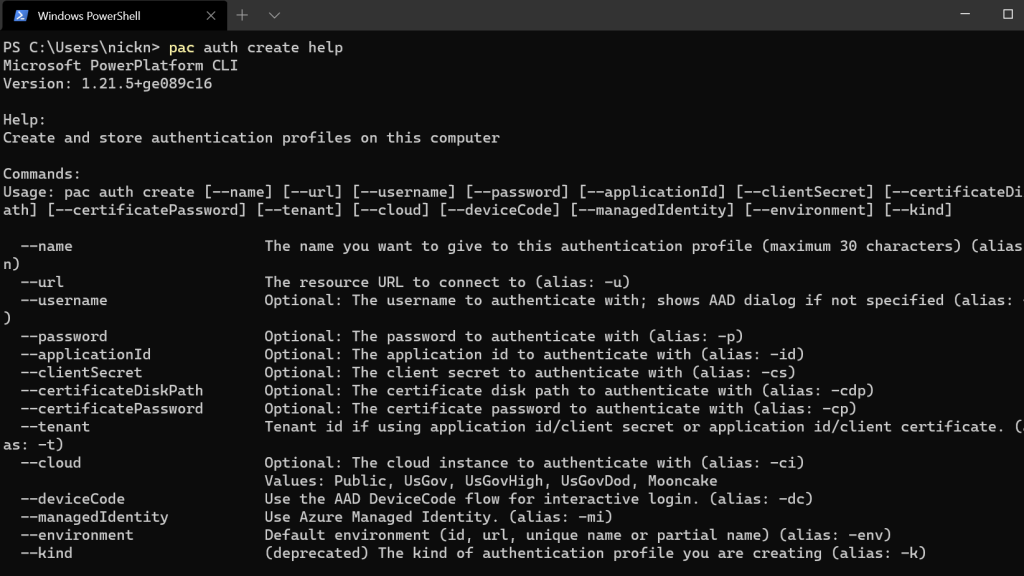

For more complicated authentication scenarios, such as Managed Identities and App Id/Client Secret, you can use the pac auth help
command to identify the appropriate switches. For US users in Gov Cloud (GCC, GCC High, DOD) environments you will need to use the --cloud
switch to indicate the cloud instance you want to authenticate with.
You can authenticate to multiple tenants and authenticate to the same tenant with different credentials.

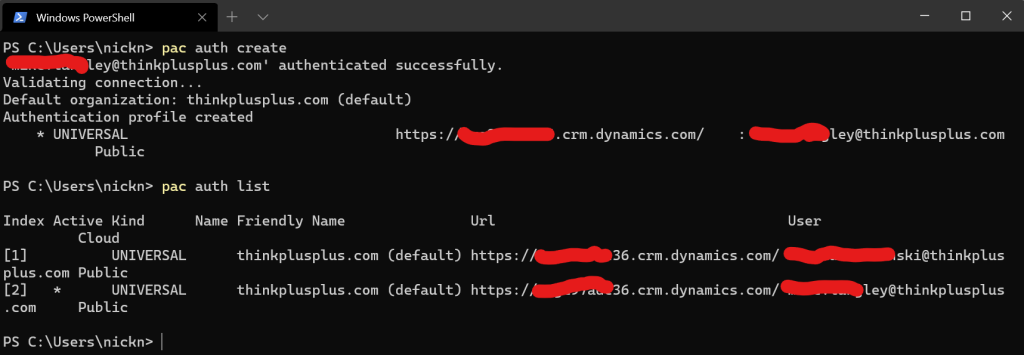

I’ve authenticated to the same tenant (thinkplusplus.com) as two different users, as shown in the image there are two authentication records (1 and 2) when I run pac auth list
.
By looking at the list the asterisk (*) indicates which authentication profile (user in a tenant) is currently active.

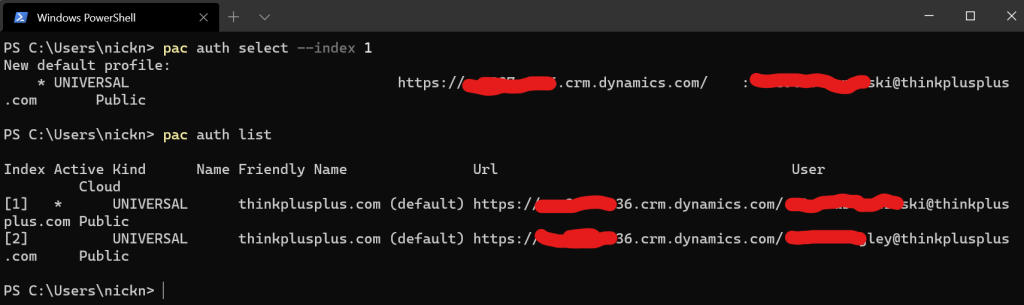

I can switch by using the index (number) with the pac auth select --index [INDEX]
command. To switch to the first profile I enter pac auth select --index 1
.
Looking at the two previous images you’ll selected profile has changed from 2 to 1. This means any interactions performed by the pac
command will occur using the context of the user shown on the selected profile.
Having to refer to authentication profiles by number can become inconvenient and you cannot reliably trust that a specific index will match to a specific profile. The better way to reference profiles is to assign them unique names. We can do this by specifying the name when authenticating using the --name
switch or assigning a name after authenticating using the pac auth name --index [INDEX] --name [NAME]
.

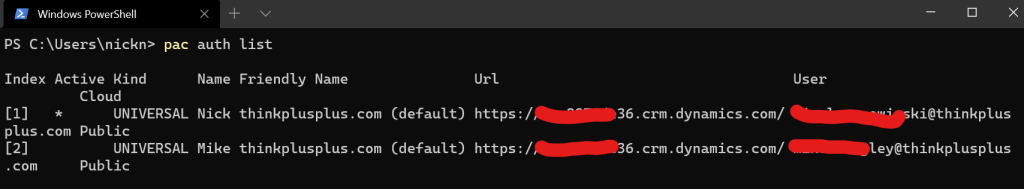

Now we can switch between profiles using the --name
switch. For example, to switch from the Nick to the Mike profile I run the command pac auth select --name "Mike"
.
Multiple Organizations
Within in a Power Platform tenant there will be multiple environments. Environments are still commonly referred to as organizations, and the PAC CLI tool is no different. Environments are managed with the org
command. You can list out the environments you have access to with the selected profile by issuing the command pac org list
.

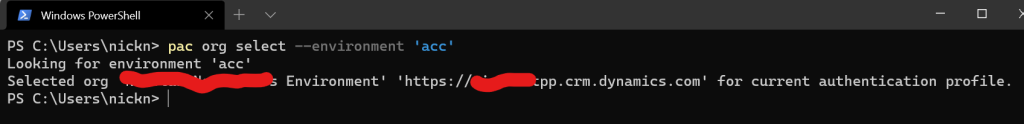

You can then select an environment by providing its Display Name, Environment Id, Environment URL, or Unique Name value using the command pac org select --environment [VALUE]
. For the value it’ll take a partial of the Unique Name or Display Name but not for any of the other values.

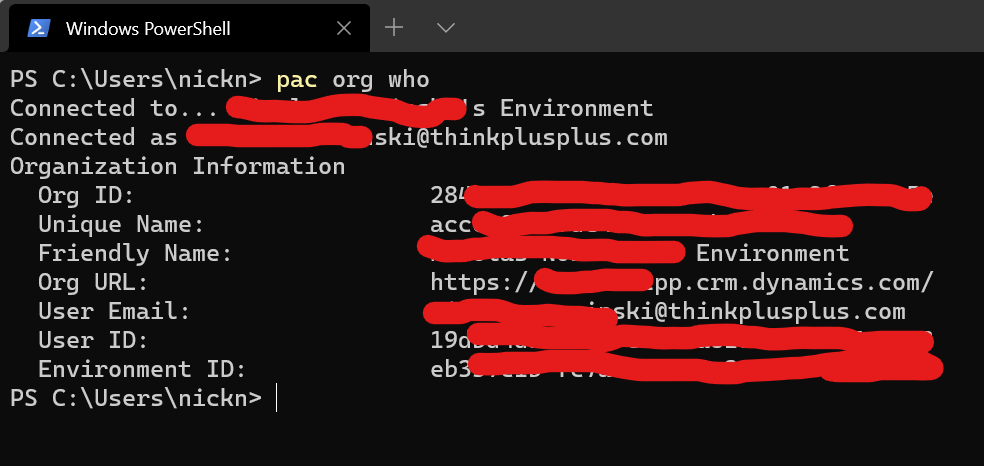

WhoAmI the PAC CLI way
The WhoAmIRequest()
is a classical first call when programming against the Dataverse API, especially when writing command line applications. It provides an output of exactly who the user was and what environment/organization was being accessed. The PAC CLI tool provides an equivalent command, pac org who
.
That’s a wrap folks…we’ve covered installing the PAC CLI tool, connecting to a tenant, and selecting an organization. From here you can start using any of the commands and verbs in pac
to work with Power Platform.
The full PAC CLI command reference is available at: Microsoft Power Platform CLI Command Groups – Power Platform | Microsoft Learn.
